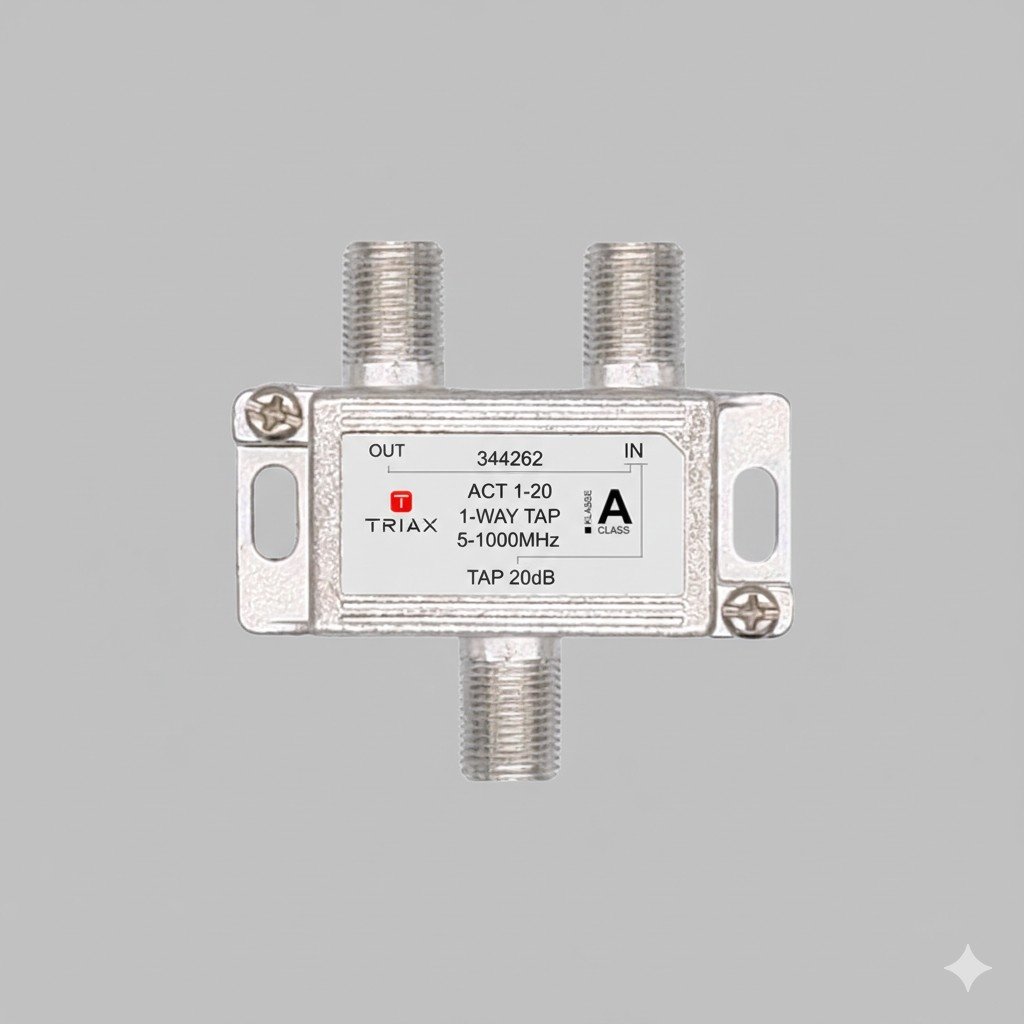

TRIAX ACT 1-20
The TRIAX ACT 1‑20 is a Gold‑range 1‑way coaxial tap designed for standard CATV, SMATV and MATV distribution systems. It supports a wide frequency range from 5 MHz to 1000 MHz, features 20 dB tap loss for controlled signal extraction, AC/DC‑blocked ports to prevent interference, and very high shielding (≈110 dB) with return loss Grade 2 for stable and low‑noise performance. Its die‑cast housing with tin plating and soldered back plate ensures reliable durability and broadcast‑quality signal distribution.
Main Features
Wide frequency range (5 MHz to 1000 MHz) ideal for CATV, SMATV and MATV networks.
20 dB tap loss delivers controlled signal attenuation for network distribution.
All ports AC/DC blocked at the inner conductor to prevent hum and electrical interference.
High shielding (≈110 dB) with return loss Grade 2 (>18 dB) for cleaner signals.
Zinc die‑cast housing with tin plating and soldered back plate for robust mechanical strength and signal protection.
