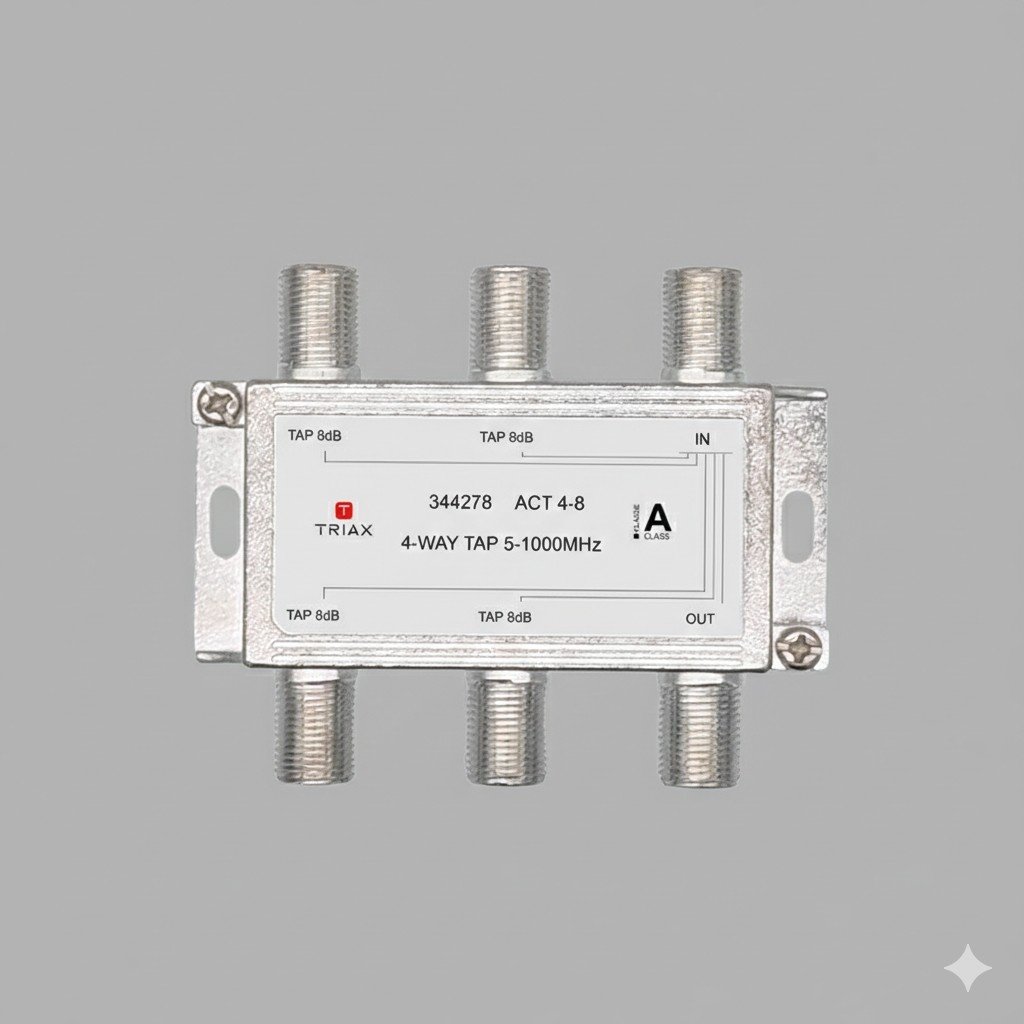

TRIAX ACT 4‑8
The TRIAX ACT 4‑8 is a Gold‑range 4‑way tap designed for standard CATV, SMATV and MATV indoor coaxial distribution systems. It supports a wide frequency range from 5 MHz up to 1000 MHz, features AC/DC‑blocked ports to prevent hum and interference, and delivers very high shielding (≈110 dB) with return loss Grade 2 for dependable, low‑noise signal performance across all outputs. The robust die‑cast zinc housing with tin plating and soldered back plates ensures mechanical durability and signal integrity.
Main Features
Wide frequency range: 5 MHz to 1000 MHz for CATV, SMATV and MATV signal distribution.
4‑way tap configuration: Splits the input signal into four outputs.
All ports AC/DC blocked: Reduces hum and electrical interference at the inner conductor.
Very high shielding (~110 dB): Protects against external noise and maintains clean signals.
Return loss Grade 2 (>18 dB): Improves signal integrity on the return path.
Durable die‑cast housing with tin plating: Ensures long‑lasting performance in indoor installations.
