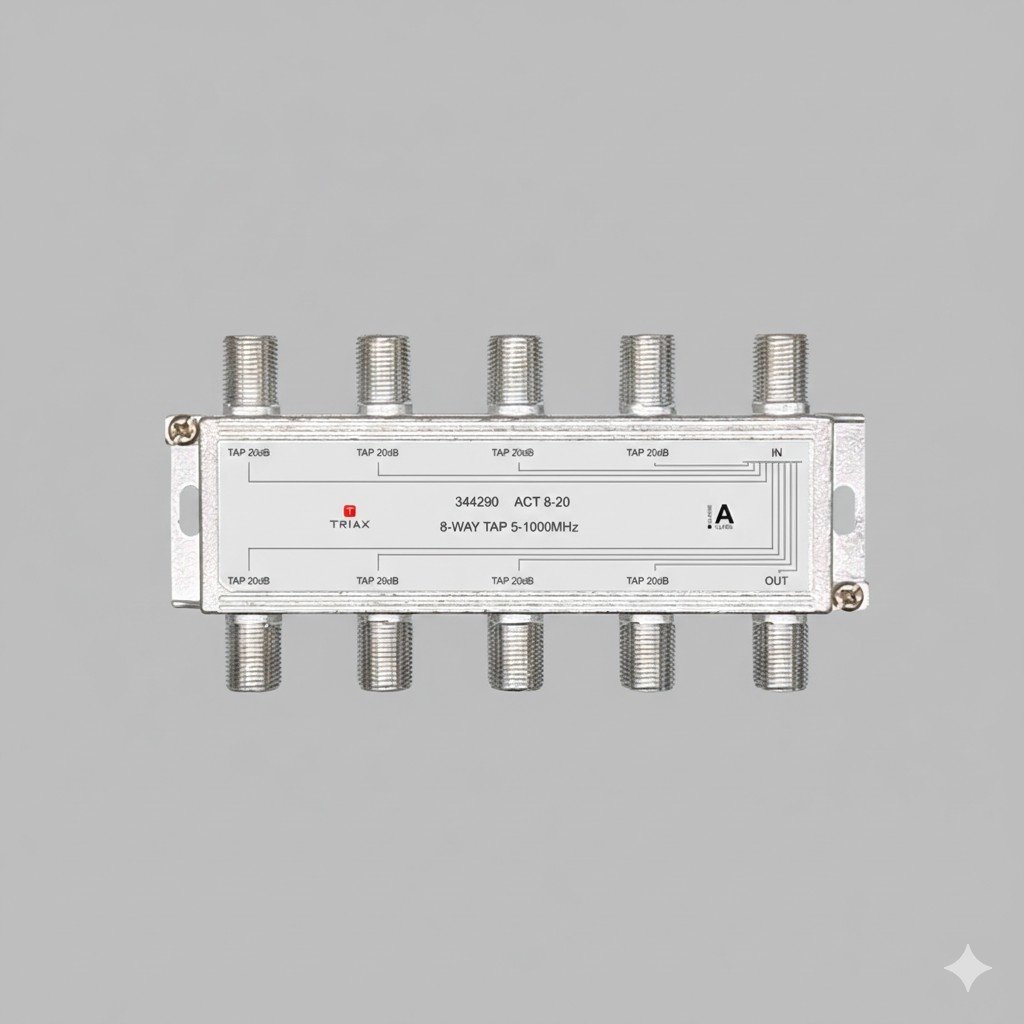

TRIAX ACT‑8‑20
The TRIAX ACT‑8‑20 is a Gold‑range 8‑way coaxial tap designed for use in standard CATV, SMATV and MATV coaxial distribution systems. It offers a wide frequency range from 5 MHz up to 1 000 MHz, 20 dB tap loss for controlled signal extraction, AC/DC‑blocked ports at the inner conductor to prevent unwanted hum and interference, and a high‑shielding die‑cast housing for stable, low‑noise signal distribution across multiple outputs.
Main Features
Wide frequency range: 5 MHz to 1000 MHz for CATV, SMATV and MATV use.
8‑way tap with 20 dB tap loss: Controlled attenuation for multi‑output distribution.
All ports AC/DC blocked at the inner conductor to reduce hum interference.
Very high shielding (~110 dB): Excellent protection against external noise.
Return loss Grade 2 (>18 dB): Ensures effective return‑path performance.
Robust die‑cast housing with tin plating: Durable build for long‑term installations.
