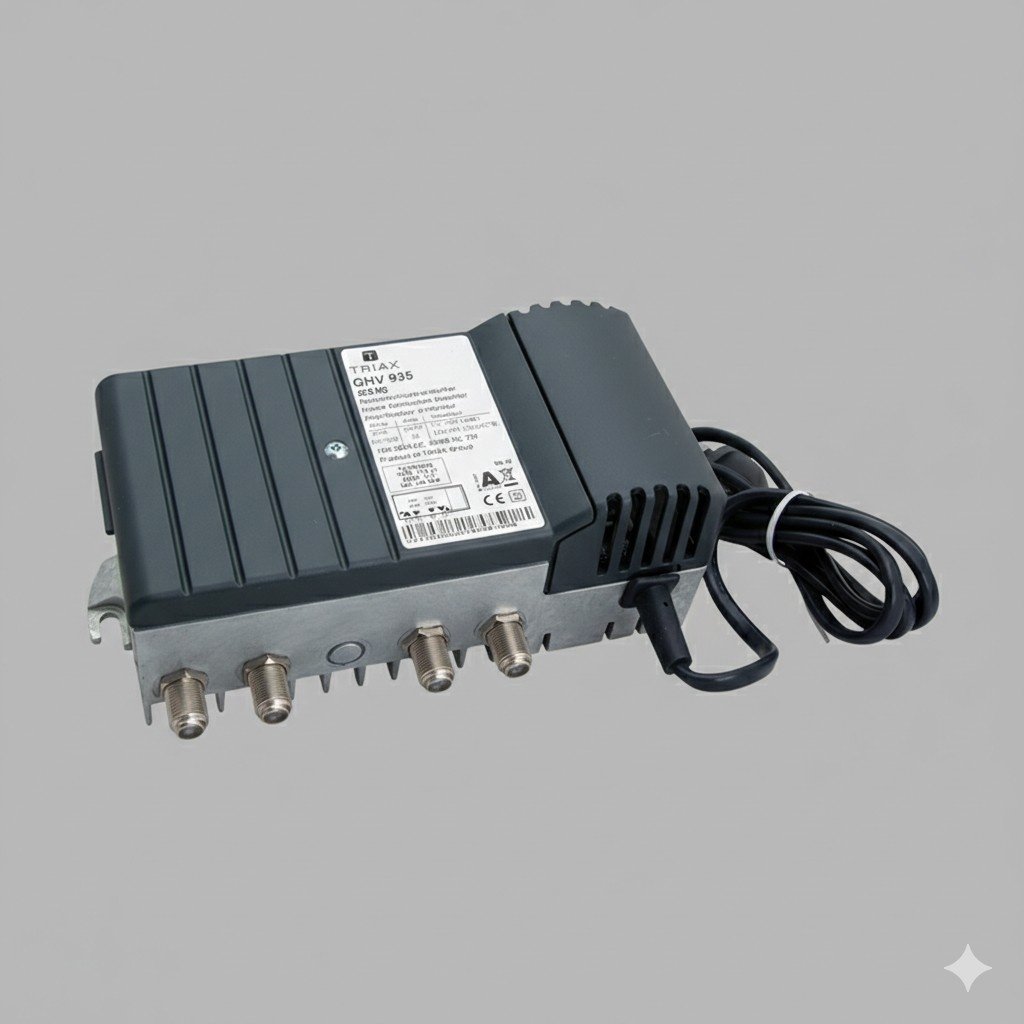

TRIAX GHV 935 35dB, 0-15dB eq. Jump
The TRIAX GHV 935 is a low-noise coaxial distribution amplifier designed for house and apartment CATV networks. It operates across a wide frequency range and delivers strong 35 dB forward gain to enhance signal quality and stability. Built for indoor installations, it features adjustable equalization and attenuation, making it suitable for small multi-dwelling distribution systems requiring consistent TV signal amplification.
Main Features
35 dB forward path gain for signal boosting
Frequency range approx. 47–1006 MHz (return path 5–65 MHz)
Adjustable equalization 0–15 dB
Adjustable attenuation up to 15 dB
Low noise figure around 7 dB
Designed for small CATV distribution networks in multi-dwelling houses
RF connectors with built-in AC power supply (190–264 V)
Indoor installation, compact housing (170×100×65 mm)
RoHS compliant and EN certified
