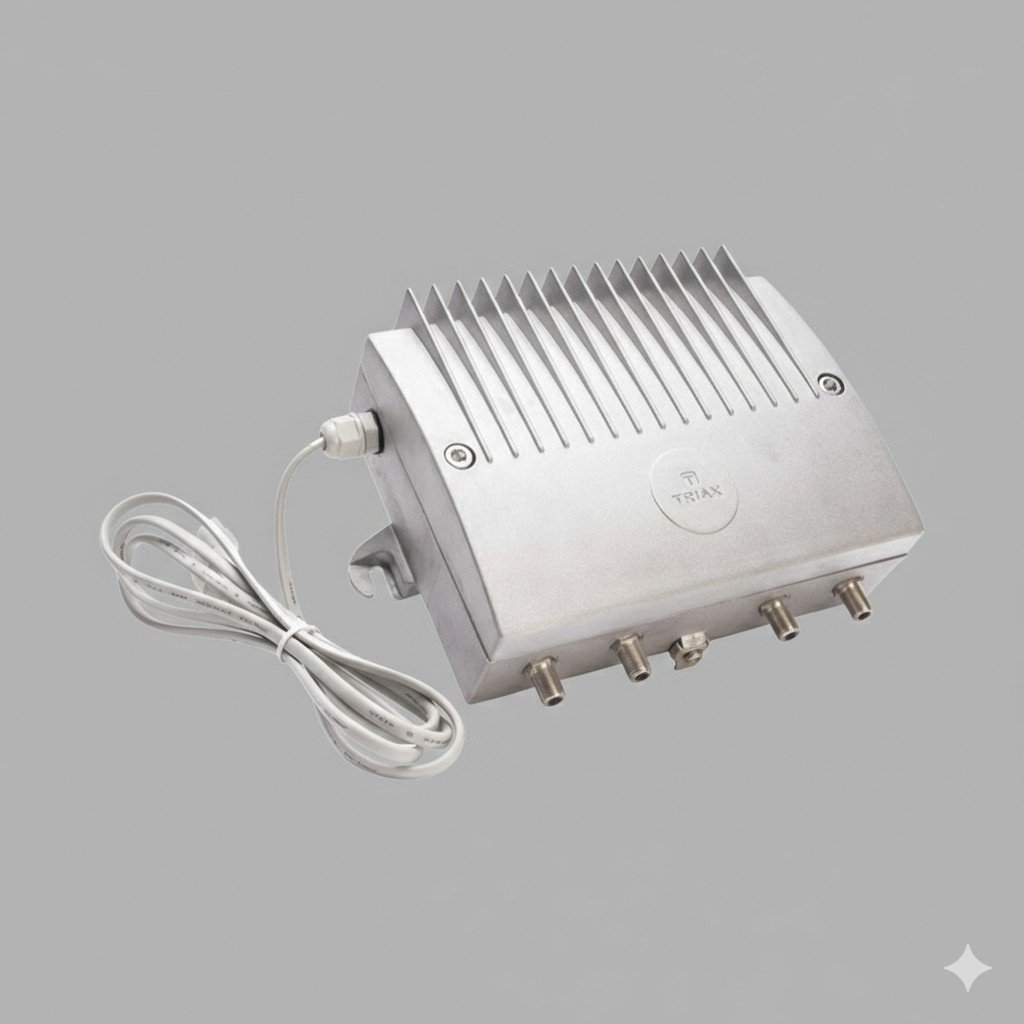

TRIAX GPV 950 Amplifier
The TRIAX GPV 950 Amplifier is a high output distribution amplifier designed for CATV distribution networks in multi-dwelling premises. It features an active return path and configurable gain, allowing use as a line extender or cascade amplifier. All functional elements are integrated on a single board, eliminating the need for external accessories and enabling flexible setup and easy operation.
Main Features
High output distribution amplifier with active return path for CATV networks.
One-board technology with all functionalities integrated.
Adjustable attenuation and equalization with rotary switches in 1 dB steps.
Downstream frequency range 85–1006 MHz with high output levels.
Upstream return path 5–65 MHz with strong output performance.
Selectable basic gain via jumpers.
Return path mode options: active, passive, or off.
Integrated cable simulator with advanced signal tuning.
Low power consumption with efficient switching power supply.
Extensive ESD and surge protection for system reliability.
