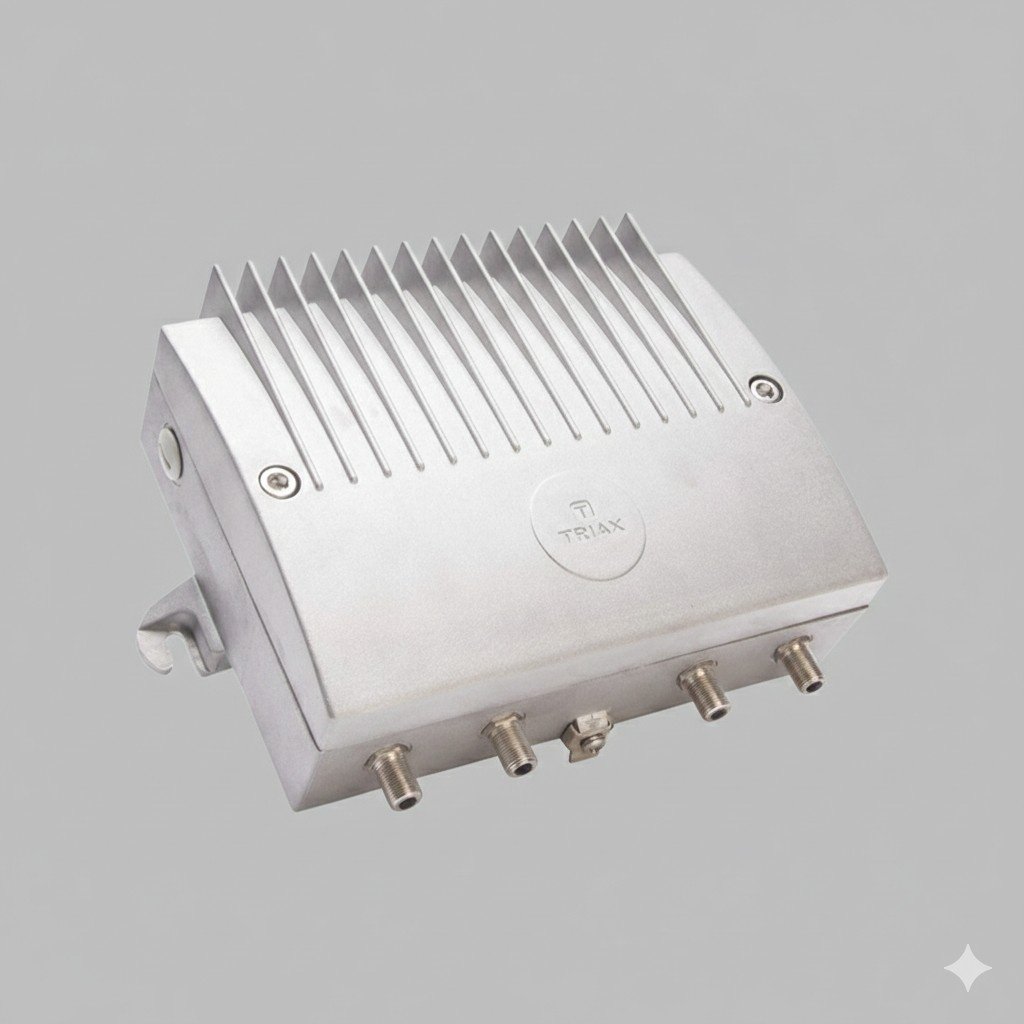

TRIAX GPV 950 L Amplifier
The TRIAX GPV 950 L Amplifier is a high-output, line-fed distribution amplifier designed for CATV distribution networks, especially in multi-dwelling buildings. It features a remote feed via RF input and active return path capability, allowing flexible use as a line extender or cascade amplifier. Built with one-board technology and adjustable settings, it ensures reliable signal amplification and distribution.
Main Features
High output distribution amplifier with active return path for CATV networks.
Line-fed via RF input (28-65 VAC), eliminating the need for separate mains feed.
One-board technology: all functional parts and settings implemented on the PCB.
Adjustable attenuation and equalization with rotary switches in 1 dB steps.
Wide downstream frequency range: 85–1006 MHz with high output levels.
Upstream return path: 5–65 MHz for strong return performance.
Selectable basic gain via jumpers for configuration flexibility.
Return path mode options: active / passive / off.
Integrated cable simulator for better network tuning.
State-of-the-art 1 GHz technology with stable, efficient operation.
Low power consumption and extensive ESD & surge protection for reliability.
