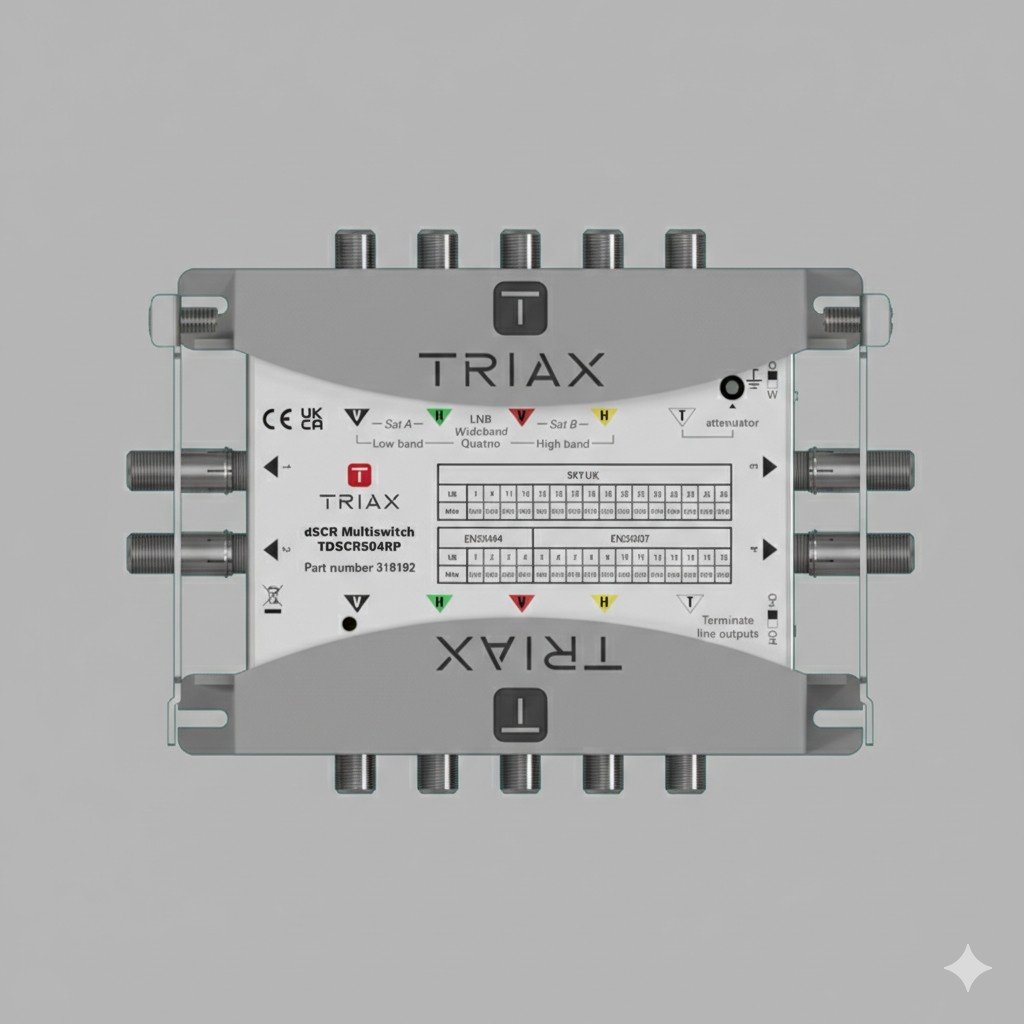

TRIAX TdSCR 504 RP Multiswitch

TRIAX TdSCR 504 RP (Remote Powered) Multiswitch

The TRIAX TdSCR 504 RP (Remote Powered) Multiswitch is designed for modern satellite distribution in multi-dwelling units (MDUs), especially where local power isn’t available. It features five inputs (four SAT plus one terrestrial) and four independent subscriber outputs that support both legacy and SCR/dSCR modes. The unit is remote powered through its output ports, is cascade compatible for larger systems, and supports a wide variety of satellite receivers including Sky Q.

Main Features

  • Remote Powered: Unit draws power via the switch output ports — no separate local PSU needed.

  • 5 Inputs: Four cascadeable LNB inputs (from a Quattro or two wideband LNBs) plus one terrestrial input with level adjustment.

  • 4 SCR/Legacy Outputs: Each output supports both traditional multiswitch and modern dSCR modes.

  • Independent Outputs: Outputs can be mixed between legacy and dSCR connections.

  • Wide Technology Support: Compatible with OLT, SCR, CSS, SKY UK, EN50494 and EN50607 single-cable technologies.

  • Cascade Support: Trunk outputs allow cascading multiple switches for larger installations.

  • Earth Bars & Quick F Connectors: Includes earth bars on subscriber outputs and five quick F connectors for easy installation.
