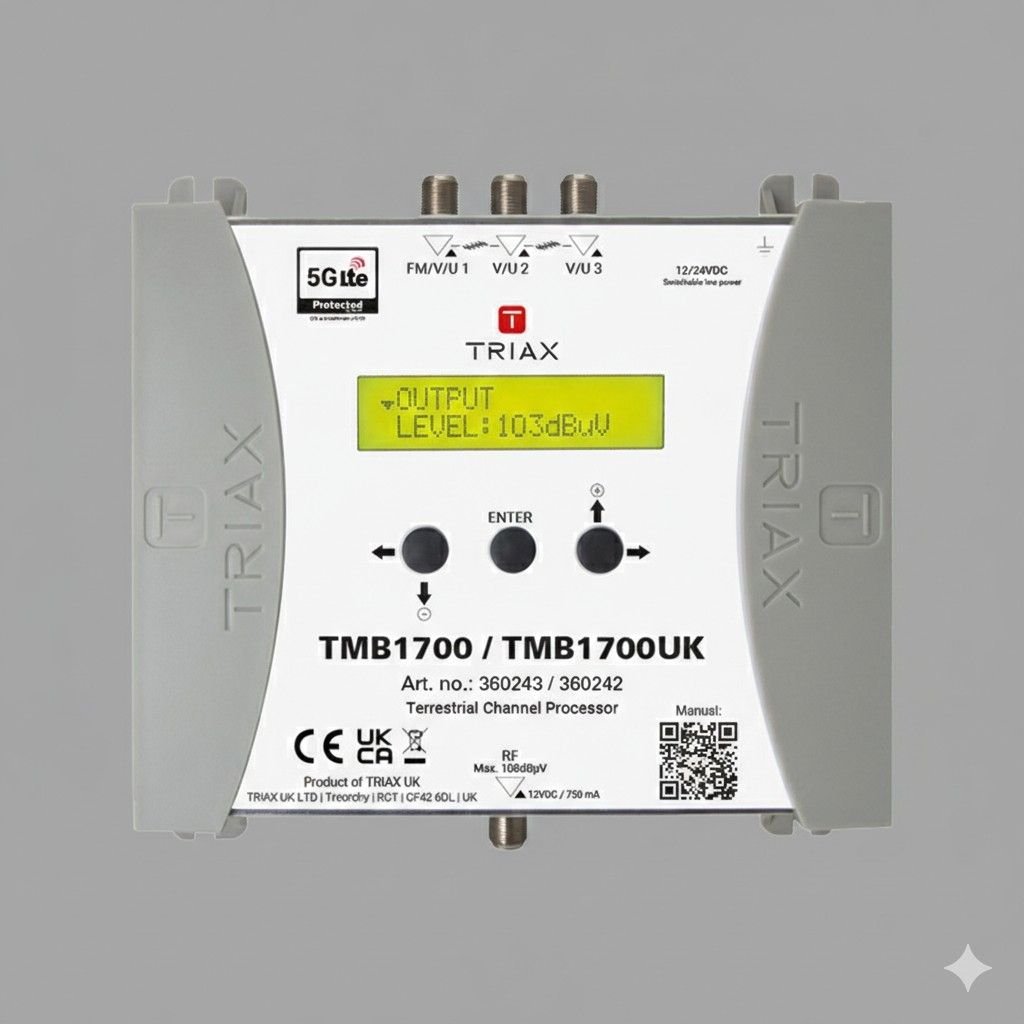

TRIAX TMB 1700 with UK Plug
The TRIAX TMB 1700 with UK Plug is a programmable filter amplifier and converter designed to optimise terrestrial FM, VHF and UHF signals from multiple inputs. It automatically scans channels, processes and converts more than 50 channels, and applies advanced filtering and gain control to ensure stable signal distribution. The unit is suited for professional TV distribution installations in hospitality, residential and multi-dwelling environments
Main Features
Easy-to-use programmable filter amplifier for terrestrial signals
Smart automatic channel scan
Processes & converts 50+ channels using 32 filters
Supports S-Band output channels
5G LTE protection at 694 MHz
High-selectivity filters (50 dB adjacent channel)
Real-time AGC per multiplex
Flexible frequency shifting (Flex Matrix)
Security lock to prevent unauthorised changes
Multiple inputs: FM/VHF/UHF & VHF/UHF options
Gain above 65 dB and wide frequency coverage (FM/VHF/UHF bands)
Powered via output F-connector, compact design
