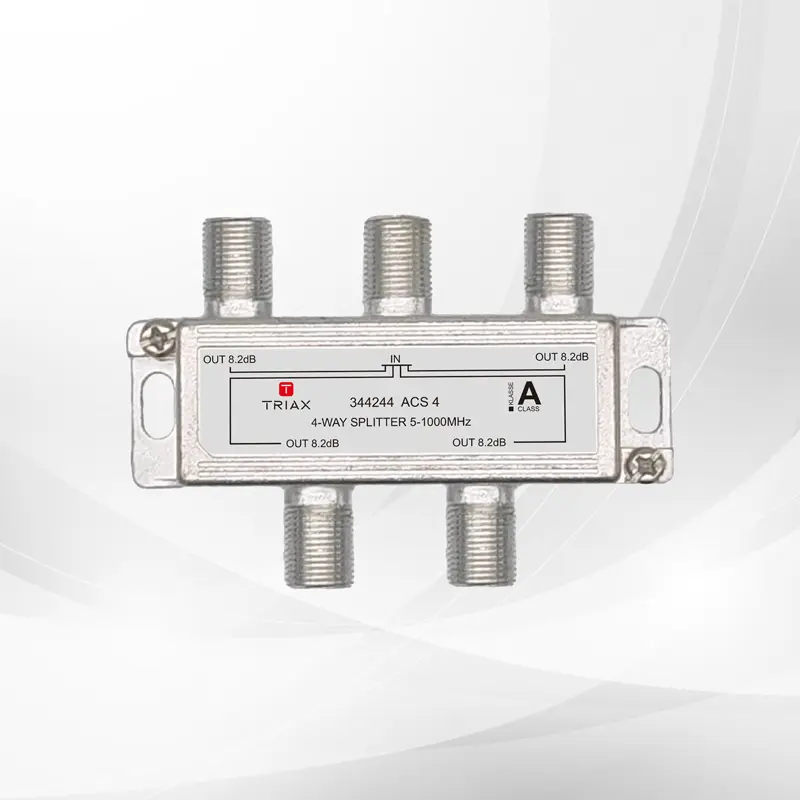

TRIAX ACS 4
Product Number: 344244
The TRIAX ACS 4 is a premium GOLD series splitter designed for professional CATV, SMATV, and MATV distribution networks. It ensures reliable signal distribution for digital broadcasting systems operating with DVB-C (QAM) and DTT (COFDM, DAB) signals.
Built with a strong die-cast housing featuring tinned copper coating and soldered back plates, the ACS 4 provides excellent shielding performance and stable signal transmission for professional coaxial installations.
Main Features
- Premium GOLD series CATV and MATV component.
- Designed for CATV, SMATV, and MATV networks.
- Supports DVB-C (QAM) and DTT (COFDM, DAB) signals.
- Wide frequency range from 5 MHz to 1.0 GHz.
- All ports are AC/DC blocked at the inner conductor.
- High shielding performance of 110 dB.
- Return loss Grade 2 with performance greater than 18 dB.
- Durable die-cast housing with tinned copper coating.
- Soldered back plates for enhanced shielding protection.
- Suitable for professional coaxial distribution systems.
