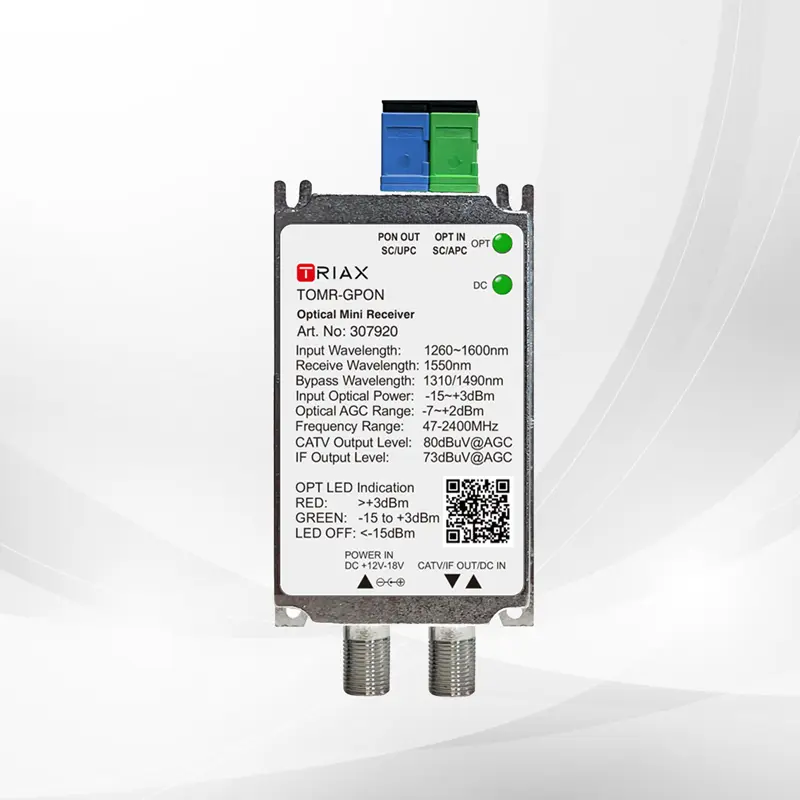

TRIAX TOMR-GPON Optical Mini Receiver
Product Number: 307920
The TRIAX TOMR-GPON Optical Mini Receiver is a compact and professional optical receiver designed for FTTH (Fibre To The Home), CATV, and SAT-IF distribution systems with integrated GPON WDM functionality. Supporting a wide frequency range of 47–2400 MHz, it delivers reliable optical-to-RF signal conversion with excellent signal quality and stability.
Built with advanced GaAs amplifier technology, ultra-low noise circuitry, and integrated AGC (Automatic Gain Control), the TOMR-GPON ensures stable RF performance across a wide range of optical input levels.
Main Features
- Professional optical mini receiver for CATV and SAT-IF systems.
- Designed for FTTH (Fibre To The Home) networks.
- Wide operating frequency range from 47–2400 MHz.
- Excellent signal linearity and flatness.
- Supports a wide range of optical input power levels.
- High return loss for stable signal performance.
- Uses advanced GaAs amplifier technology.
- Ultra-low noise design for improved signal quality.
- Built-in WDM optical bypass port:
- 1310 nm / 1490 nm support
- Integrated GPON WDM functionality.
- Built-in AGC (Automatic Gain Control) function.
- Compact design for easier installation.
- LED indicators for:
- Power status
- Optical level indication
- Suitable for professional fibre optic TV and SAT distribution systems.
