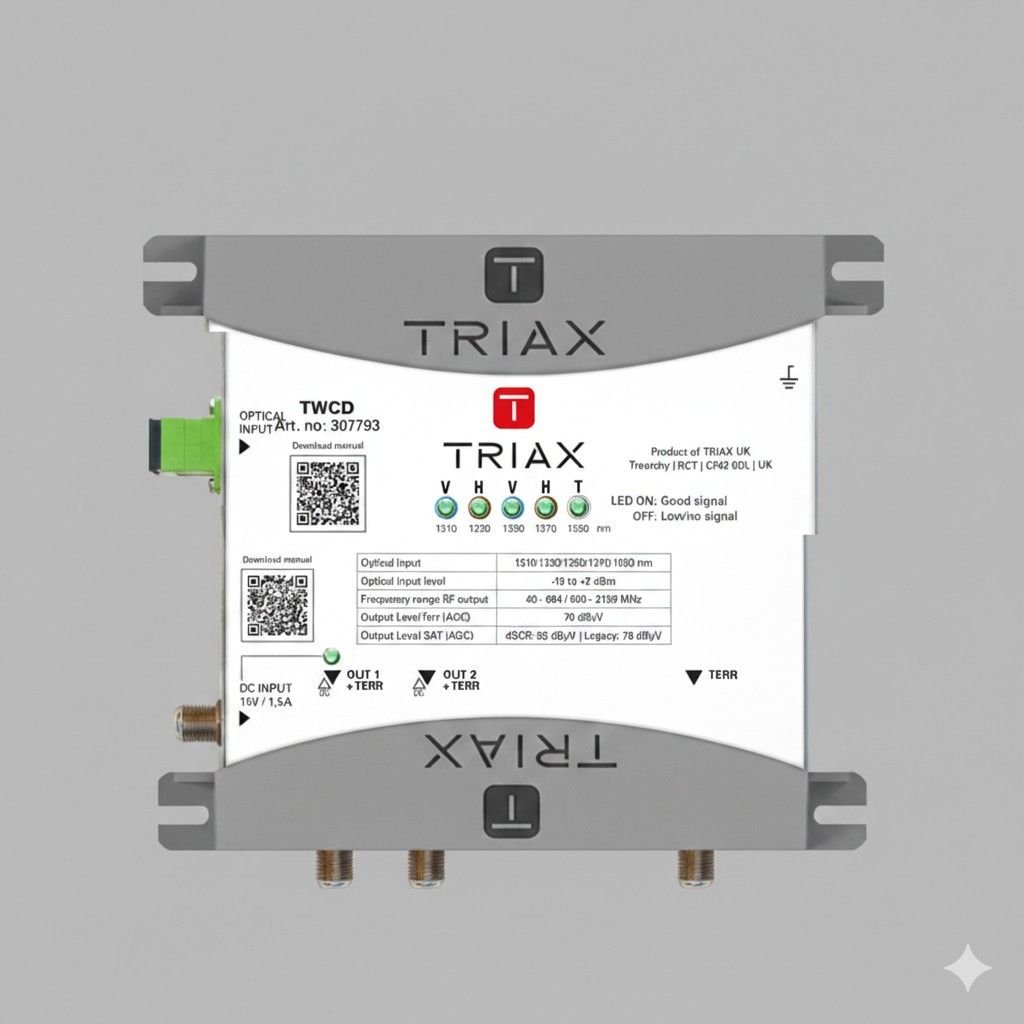

TRIAX TWCD Triax Wideband Combined Dual Receiver
The TRIAX TWCD Triax Wideband Combined Dual Receiver is an optical fibre receiver designed for medium and large passive fibre networks. It converts multiple optical wavelengths (1310, 1330, 1350, 1370 & 1550 nm) into two wideband satellite (V/H) and one terrestrial (TERR) RF outputs, ensuring strong signal quality with built-in Automatic Gain Control (AGC) and signal indicator LEDs.
Main Features
Converts optical wavelengths to 2 × wideband satellite (V/H) and TERR RF outputs.
Automatic Gain Control (AGC) on all outputs for stable signal levels.
Signal quality indicator LEDs for each output.
Supports up to 64 passive splits (expandable).
Powered via satellite trunk outputs or local DC supply (optional).
Designed for use with TRIAX TOXT and TOST optical transmitters in FTTR setups.
