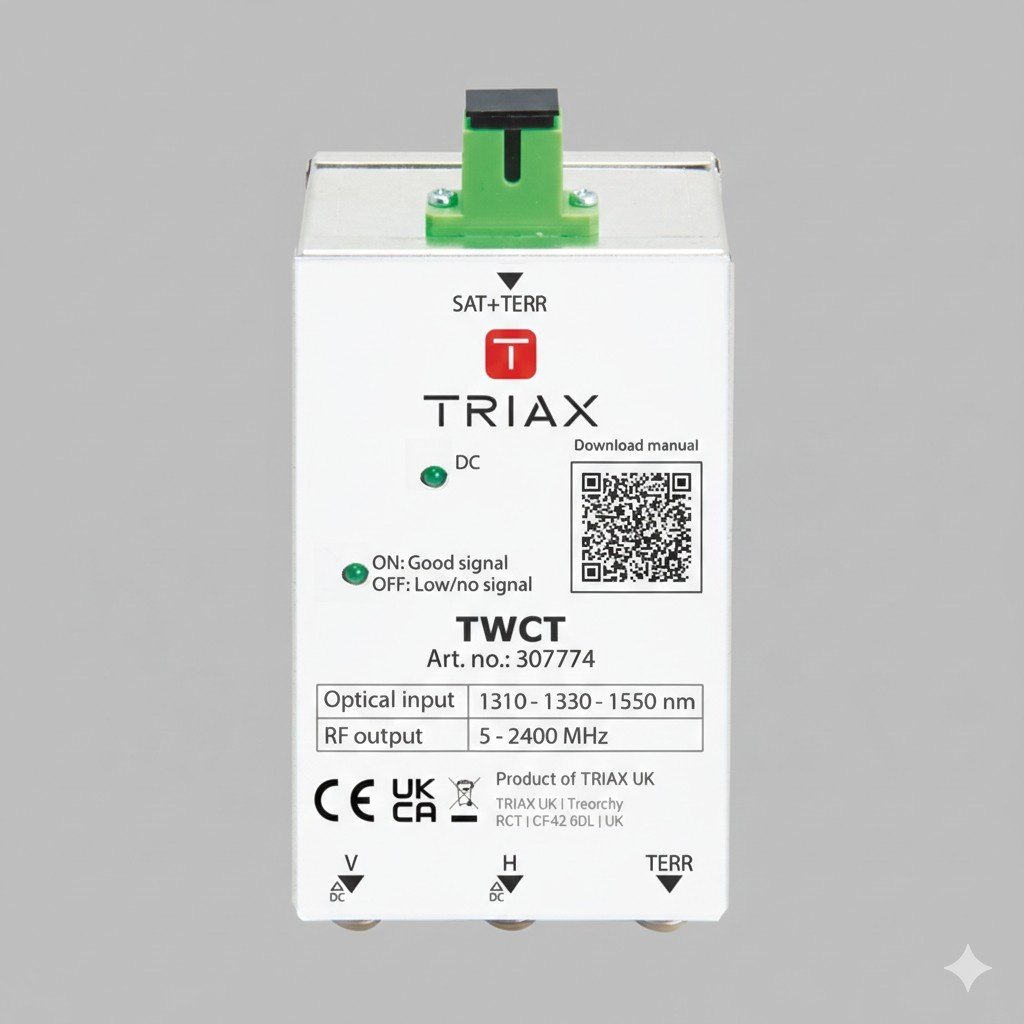

TRIAX TWCT Wideband Optical Converter with separate Terrestrial
The TRIAX TWCT Wideband Optical Converter with separate Terrestrial is a passive optical receiver‑converter designed for distributing satellite, DVB‑T and DAB services over a single optical fibre with minimal attenuation (≈ 0.3 dB per 1000 m). It features two wideband outputs (vertical + horizontal) for SAT IF and a separate terrestrial output, ideal for efficient feed distribution from a central satellite dish into larger passive fibre networks.
Main Features
Converts one incoming optical signal into 2 wideband SAT IF outputs (V/H) plus a separate terrestrial RF output.
Almost lossless signal transmission for SAT IF, terrestrial TV and radio over long optical fibre distances (~ 0.3 dB/1000 m).
Supports wideband LNB feed signals transmitted over single fibre for flexible deployment.
Space‑saving installation using a single 3 mm fibre instead of multiple coaxial cables.
Robust construction with SC/APC optical input and F‑type RF outputs for compatibility with passive optical systems.
Suitable for FTTX, passive optical distribution and multiswitch networks requiring separate SAT and terrestrial paths.
